Full adjustment - Total Performance

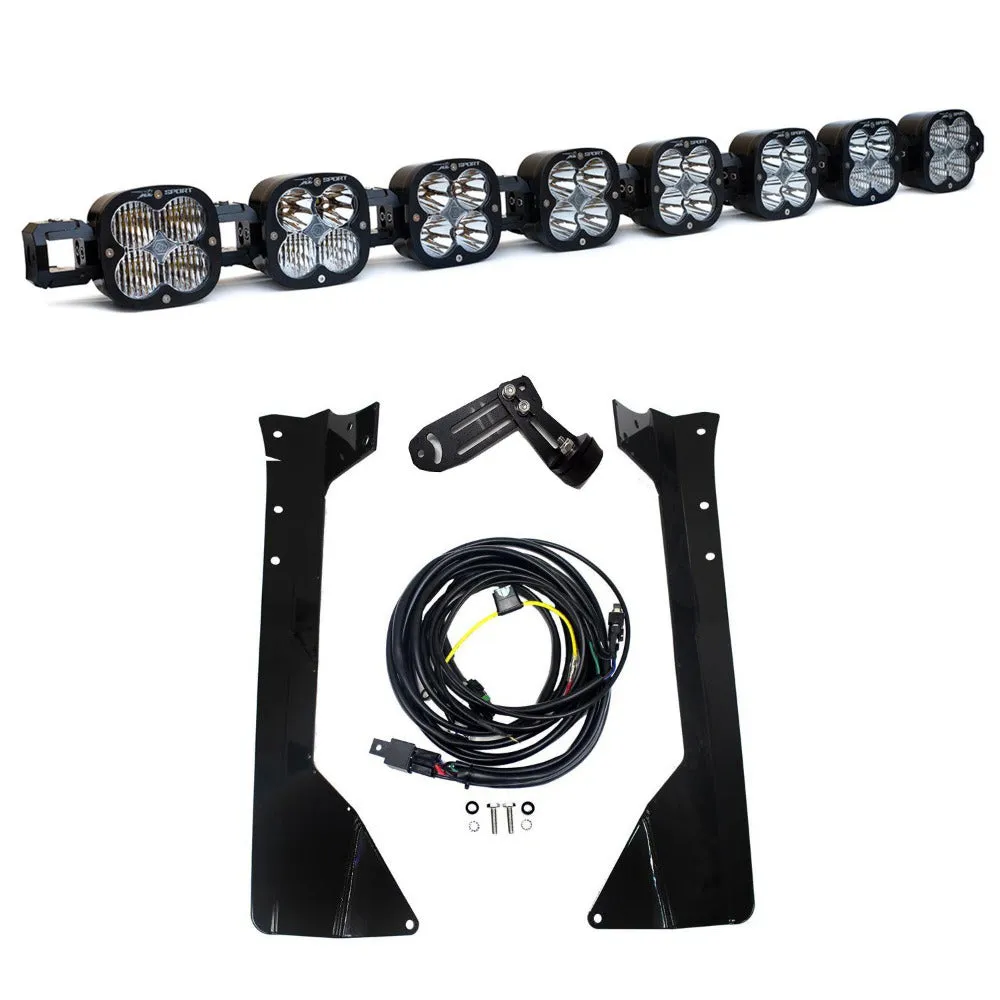

Baja Designs XL Linkable Kit for the 2007-2016 Jeep JK was designed for enthusiasts looking to take charge with a light package that is completely customizable for their needs. This kit includes 8 XL Sports, Links, vehicle-specific mounting brackets, a wiring harness, and rock guards. A pre-load support bracket is included to ensure stiffness in the most extreme terrain.

This kit is a turn-key system for the Jeep JK owner that is looking to take down the night, and give a standoff appearance to their vehicle!

SPECS:

• Lumens: 25,200 Utilizing 32 LEDs
• Wattage/Amps: 208W / 16A
• LED Life Expectancy: 49,930 Hours
• Front Lens: Hard Coated Polycarbonate
• Housing: Powder Coated Cast Aluminum
• Bezel: Billet Machined Aluminum
• Hardware & Bracket Material: Stainless Steel
• Exceeds MIL-STD810G (Mil-Spec Testing)
• Built-In Overvoltage Protection
• IP69K (Waterproof, Submersible to 9ft)
• IK10 Compliant (Mechanical Impact Testing)

WHAT'S INCLUDED:

• x4 XL Sport Spot LED Light
• x2 XL Sport Driving/Combo LED Light
• x2 XL Sport Wide Cornering LED Light
• x8 XL Sport Rock Guards
• Jeep JK Mounting Brackets
• Pre-load Kit
• Wiring Harness

BEAM PATTERNS:

• Driving/Combo:  Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Wide Driving (44°) and spot (6°) optics to provide you with a smooth blend of light for both near-field applications and distance (Lighting Zone 3)

• Wide Cornering: BD was the first to develop a pattern specifically for cornering, dust, and/or fog conditions. The Wide Driving pattern offers a 44° flattened horizontal beam for the ultimate in comfort lighting. (Lighting Zones 1 & 2)

• High-Speed Spot: A longer and narrower 6° beam focus for illumination further down the trail or road.  The Spot pattern is designed to be used in conjunction with additional Wide Driving and/or Driving/Combo beam lights. (Lighting Zone 4 & 5)
