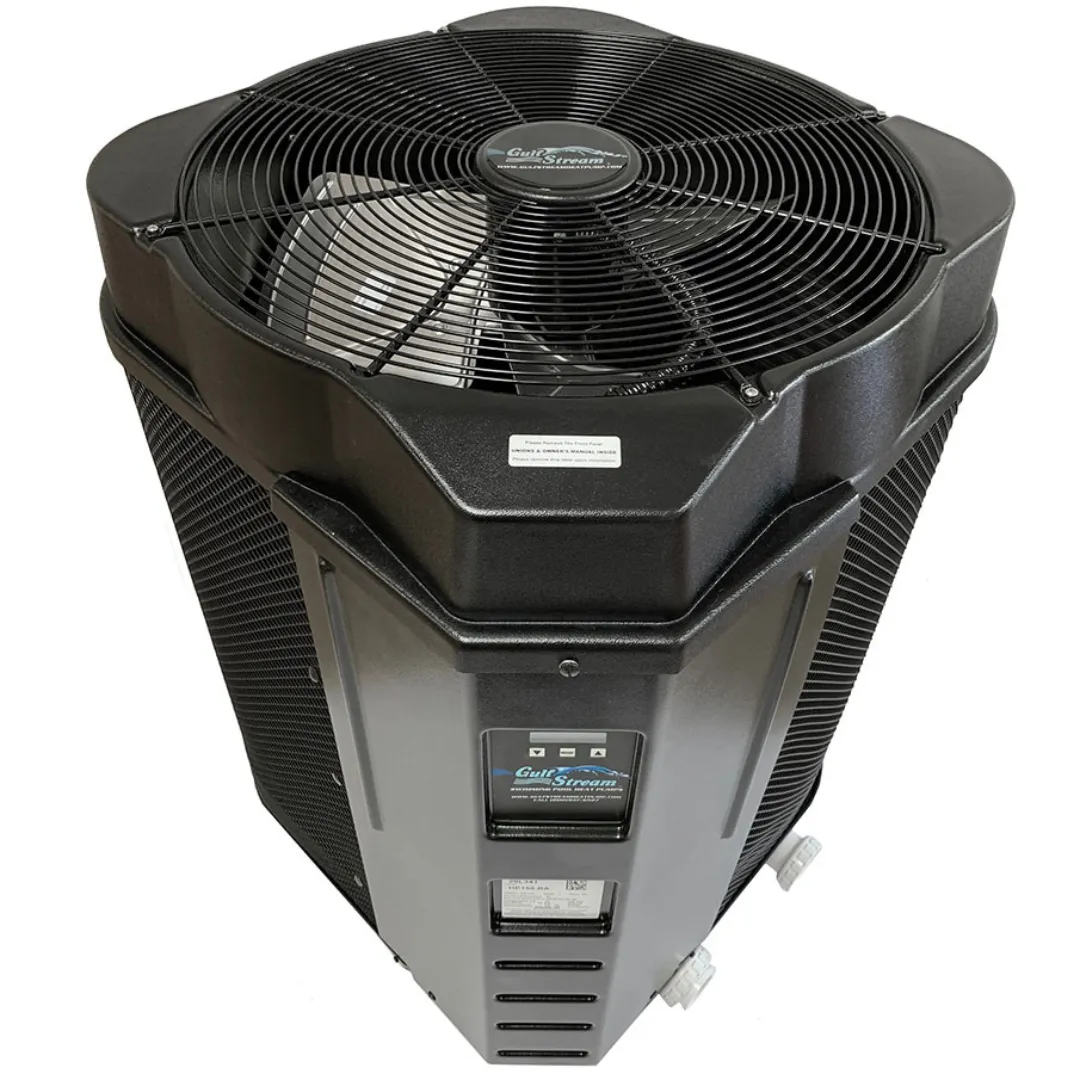

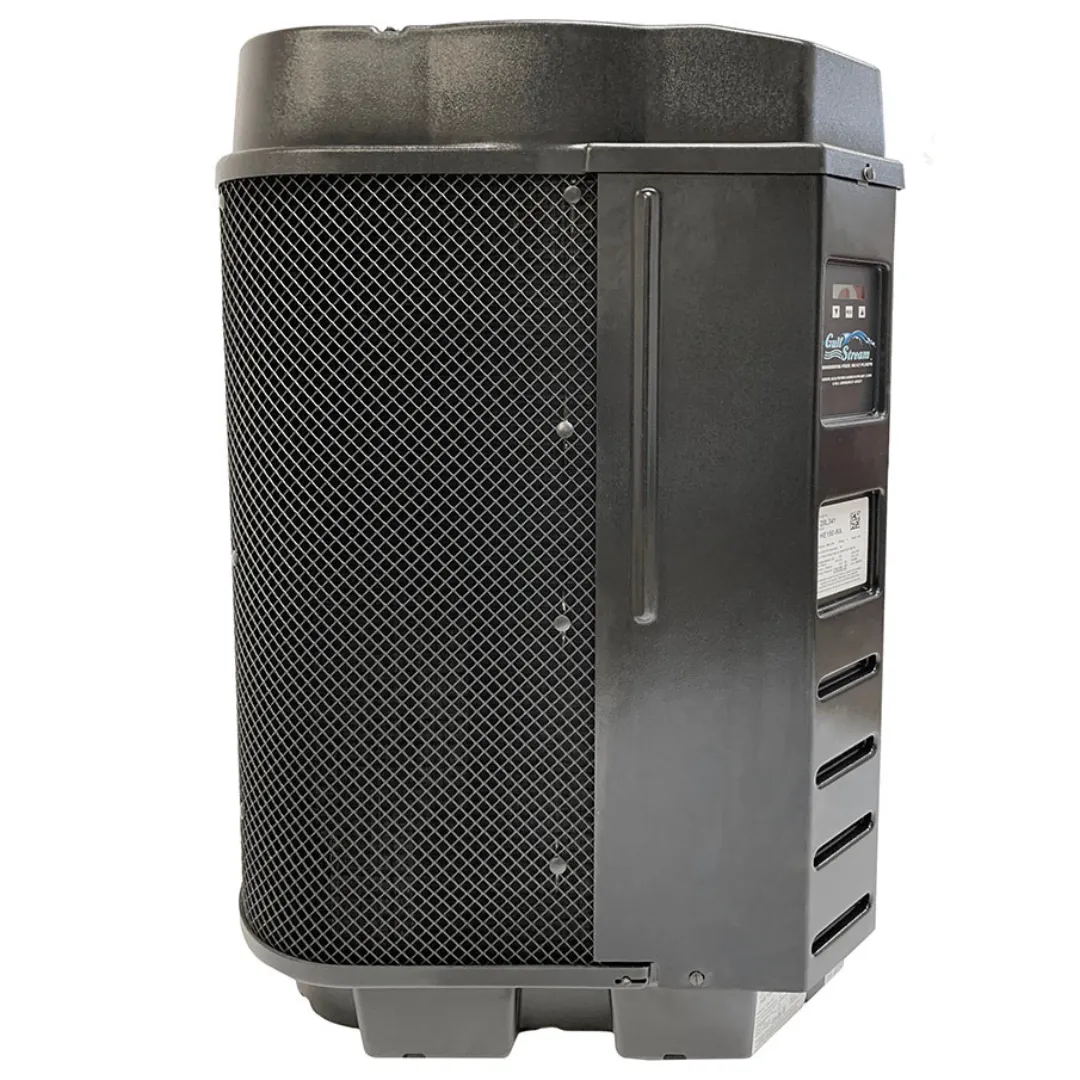

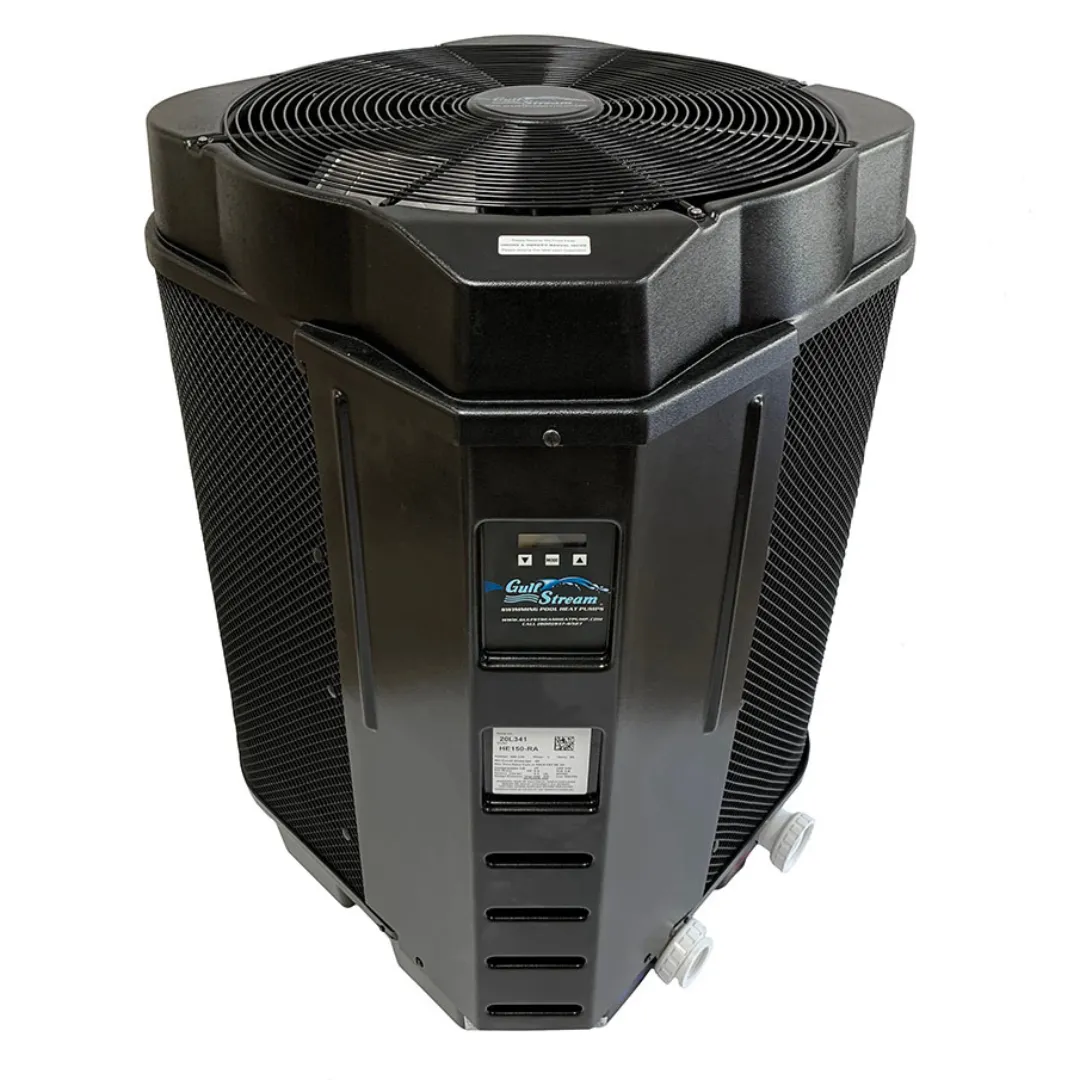

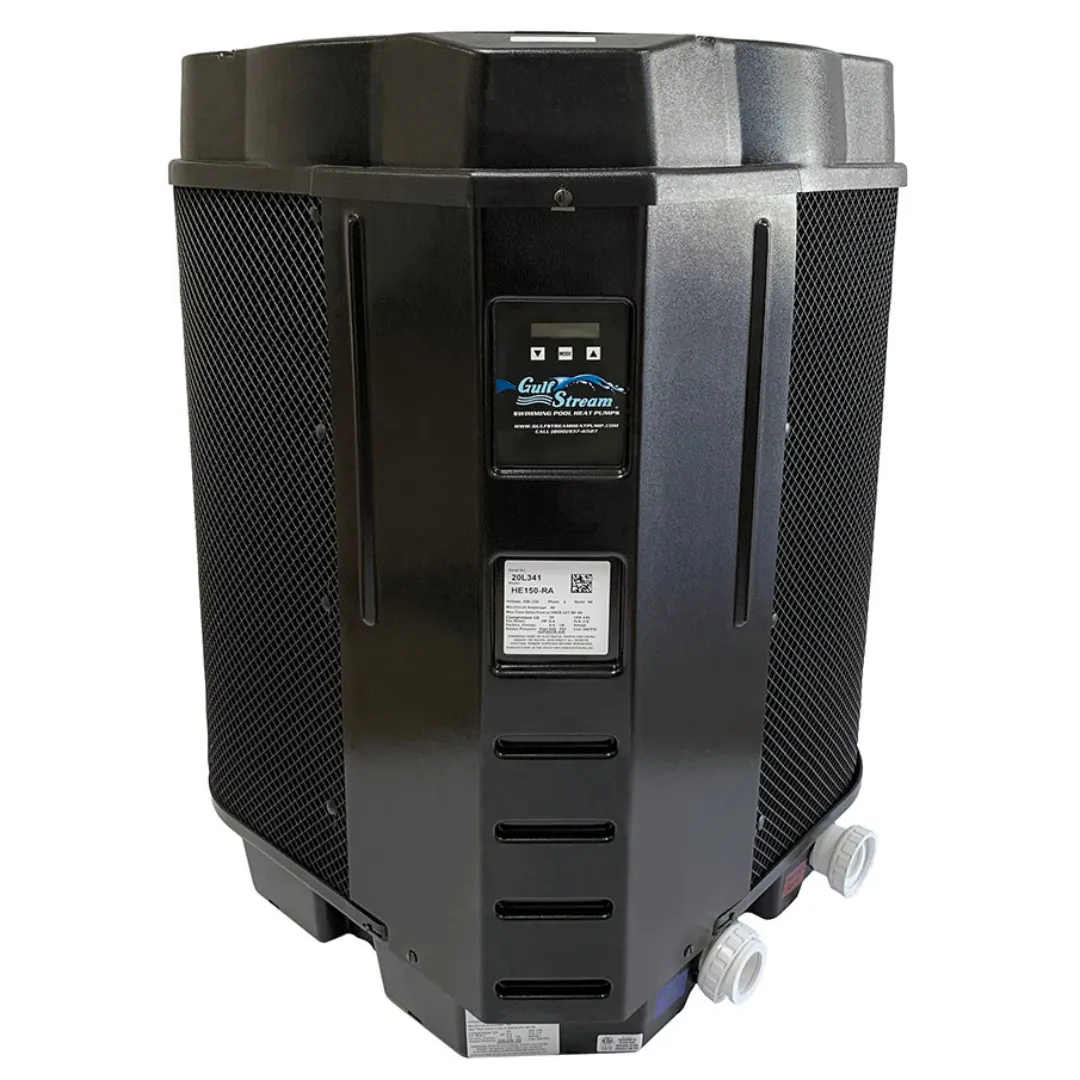

The HE125RB 60Hz heat pump is a high-efficiency, ultra-quiet pool heat pump manufactured by Gulfstream. The model is 125,000 BTU and customized with the most comprehensive digital control board available. With an easy-to-operate interface, you can keep your pool heated consistently throughout the day with even heat technology.

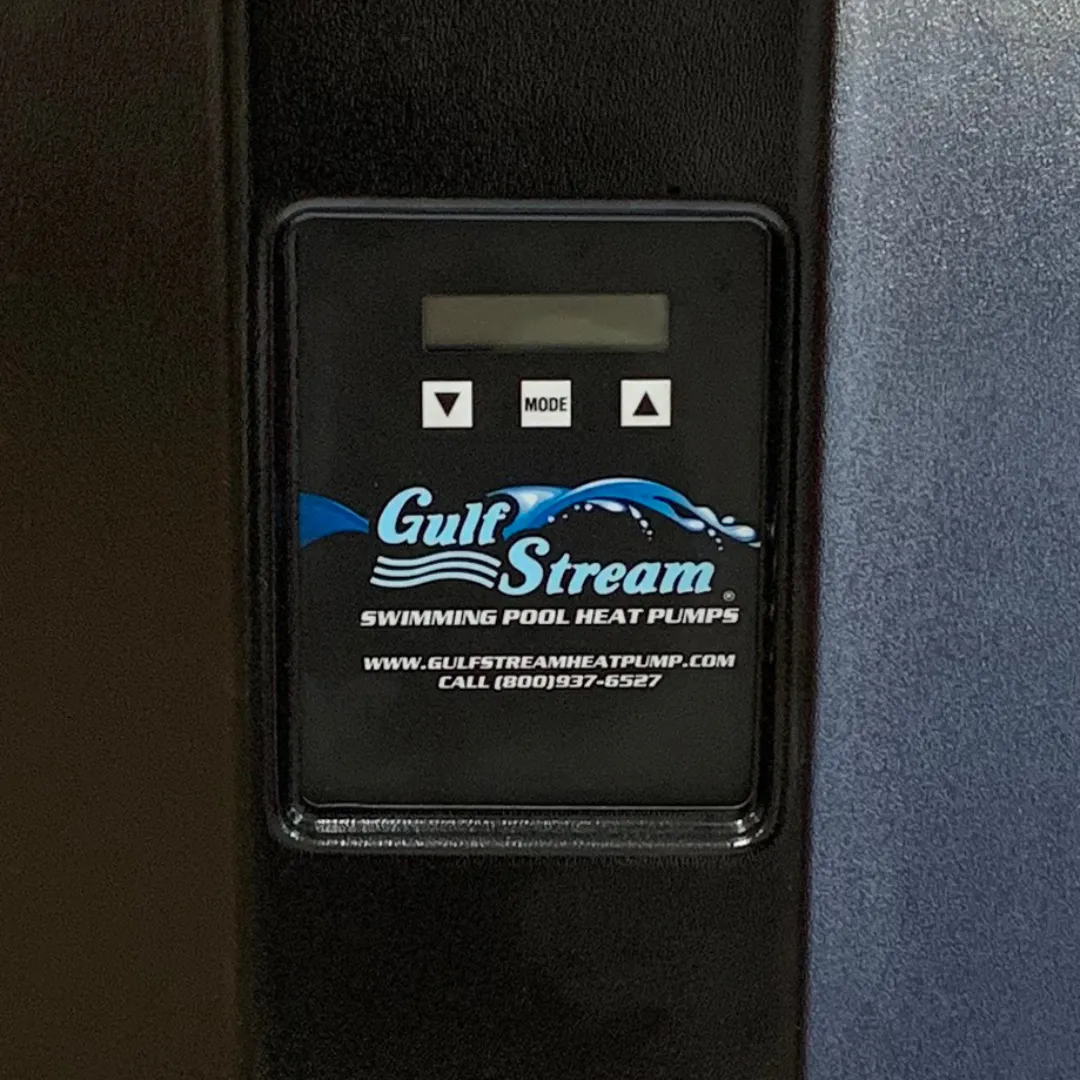

Set it and forget it! The easy-to-use LCD screen includes a simple to manage 3-button control panel to evenly heat your pool to your personal preference. Compatible with all automation systems.
- Application: Up to 20,000 Gallons*
- Titanium Turbo Heat Exchanger
- Efficient Scroll Compressor
- Super-Quiet 8 Pole Emerson Fan Motor
- Higher efficiency in colder weather
- Quiet – as low as 56 decibels at full operation
- No-Rust ABS Cabinet
- Digital Diagnostic LCD Display reads in real words
- Super-Sized Evaporator Coil (20 square feet of wrap-around coil)
- Patented Refrigerant Metering System
- 2” Water flow - no need for an external bypass
- Plumbing located out of the way
- Compatible with all remote control systems
- R-410A Refrigerant is environmentally friendly
Specifications:
- Phase: Three Phase
- Brands: Gulfstream
- BTU Output, Standard Rating Conditions 80/80/80: 125,000 BTU
- COP, Standard Rating Conditions 80/80/80: 6.3
- BTU Output 80/80/63: 110,000 - 119,000 BTU
- COP 80/80/63: 5.9
- Refrigerant Type: R-410A
- Display Controls: Digital
- Thermostat: Digital
- Compressor: Scroll
- Heat Exchanger: 100% Titanium
- Hertz: 60 Hz
- Phase Type: Three Phase
- Voltage: 208/230 v
- Minimum Circuit Ampacity / Max Breaker: 37/50
- Optimal Water Flow GPM: 45 GPM
- Water Flow Min/Max GPM: 20/70 GPM
- Dimensions: 31 x 31 x 38
*Please Note: The BTU rating is the minimum heating requirement for the recommended gallons shown. This is under perfect conditions with no temperature loss. Always size up if you plan to use the heater in cool weather or without a cover. Need help? Contact us anytime - we’re here to help!
