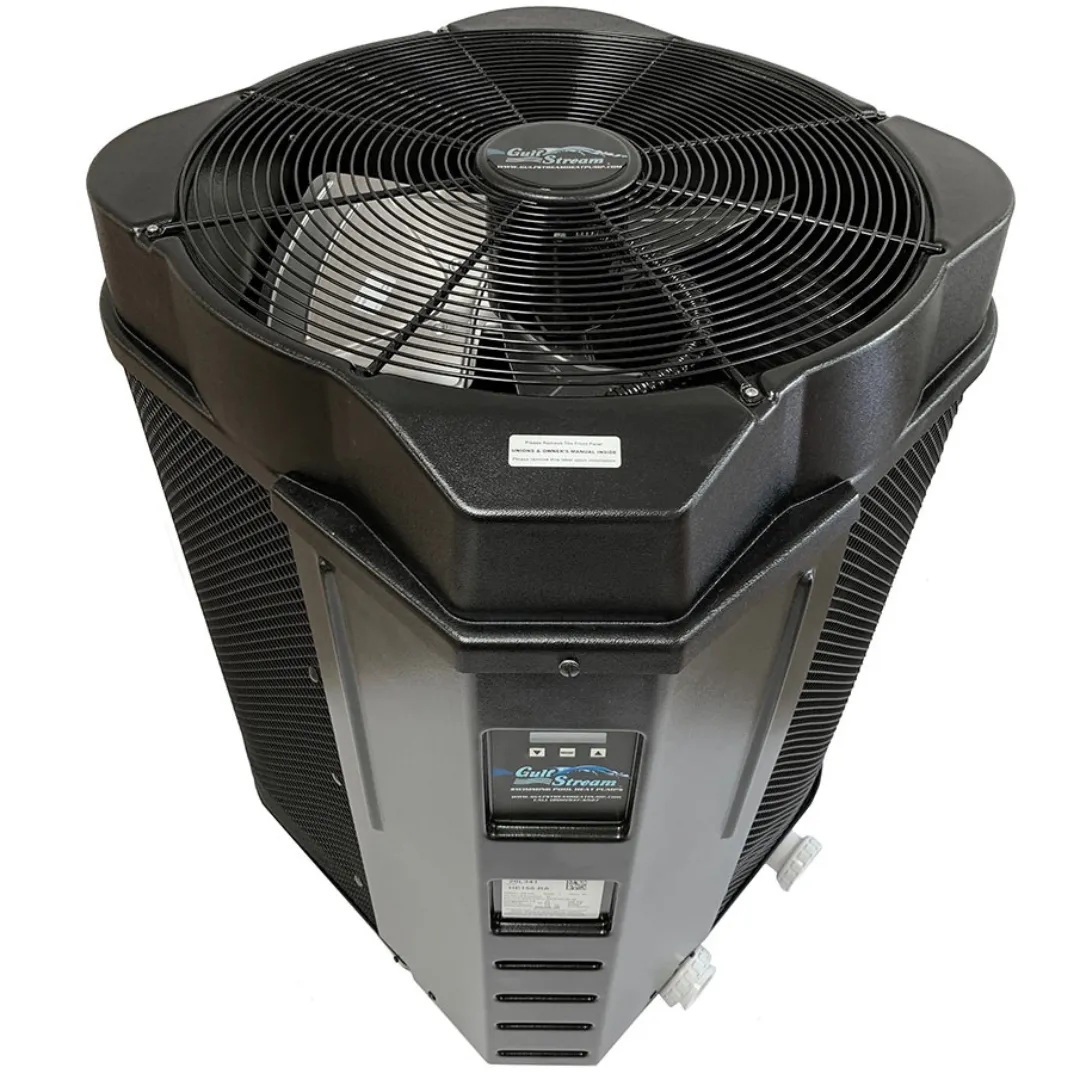

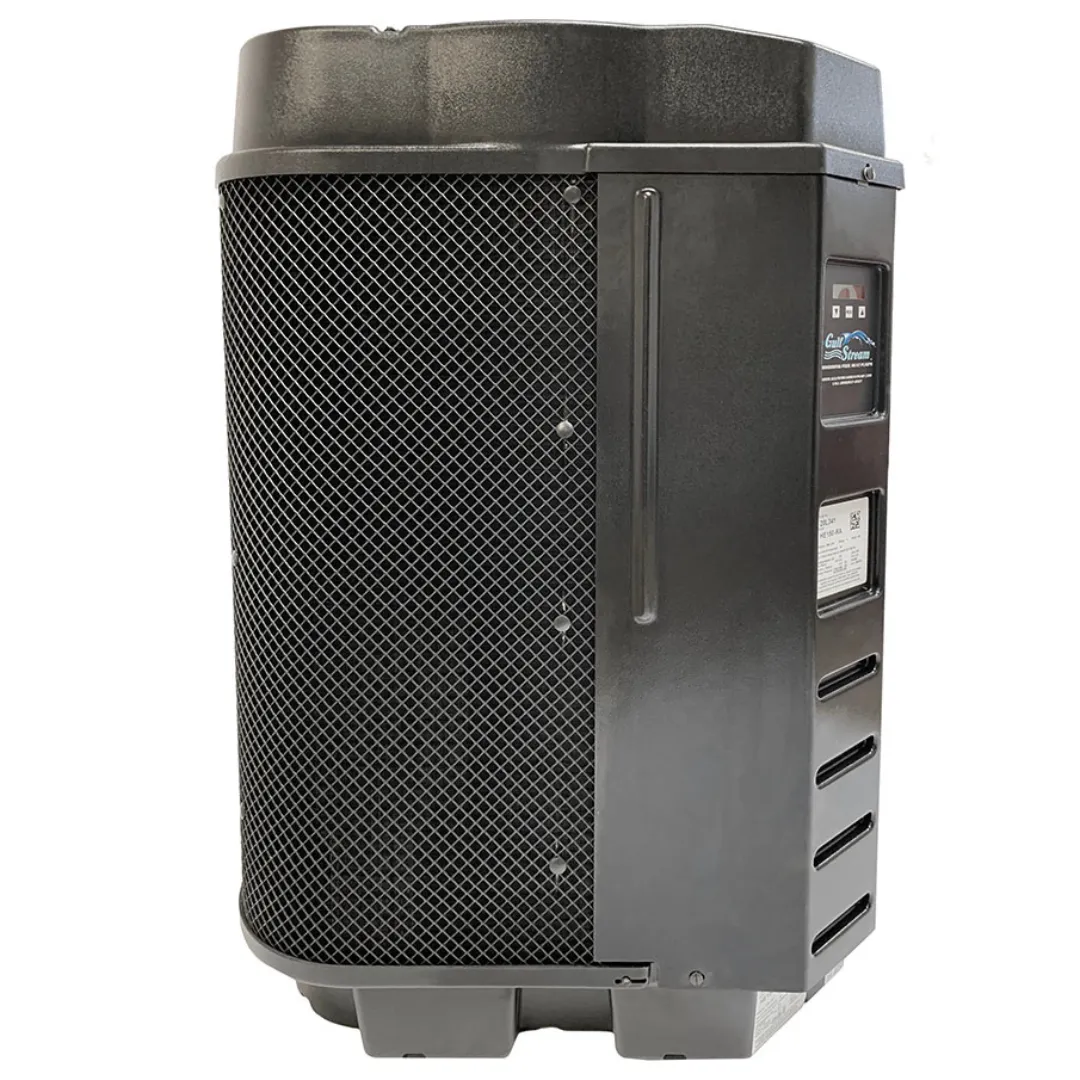

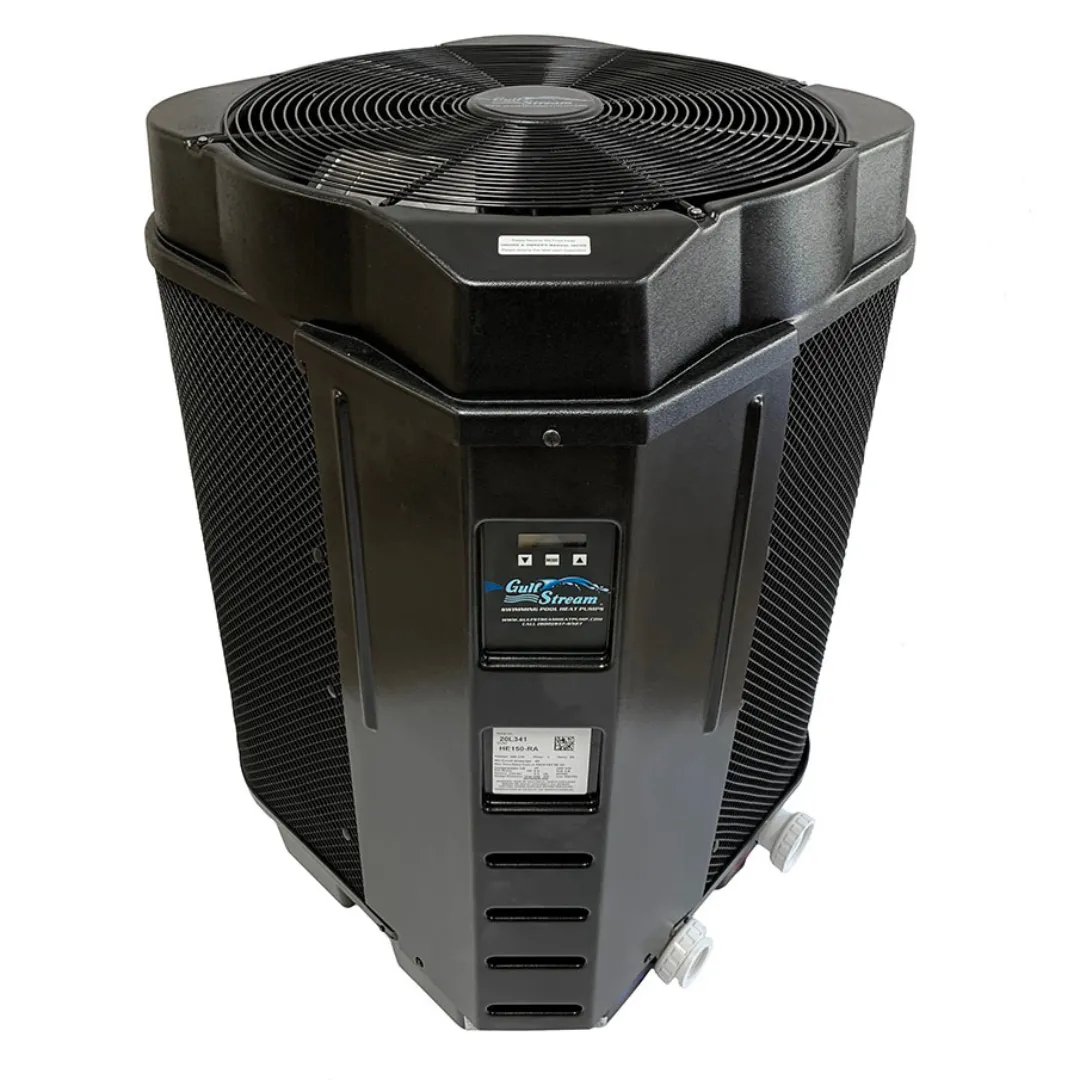

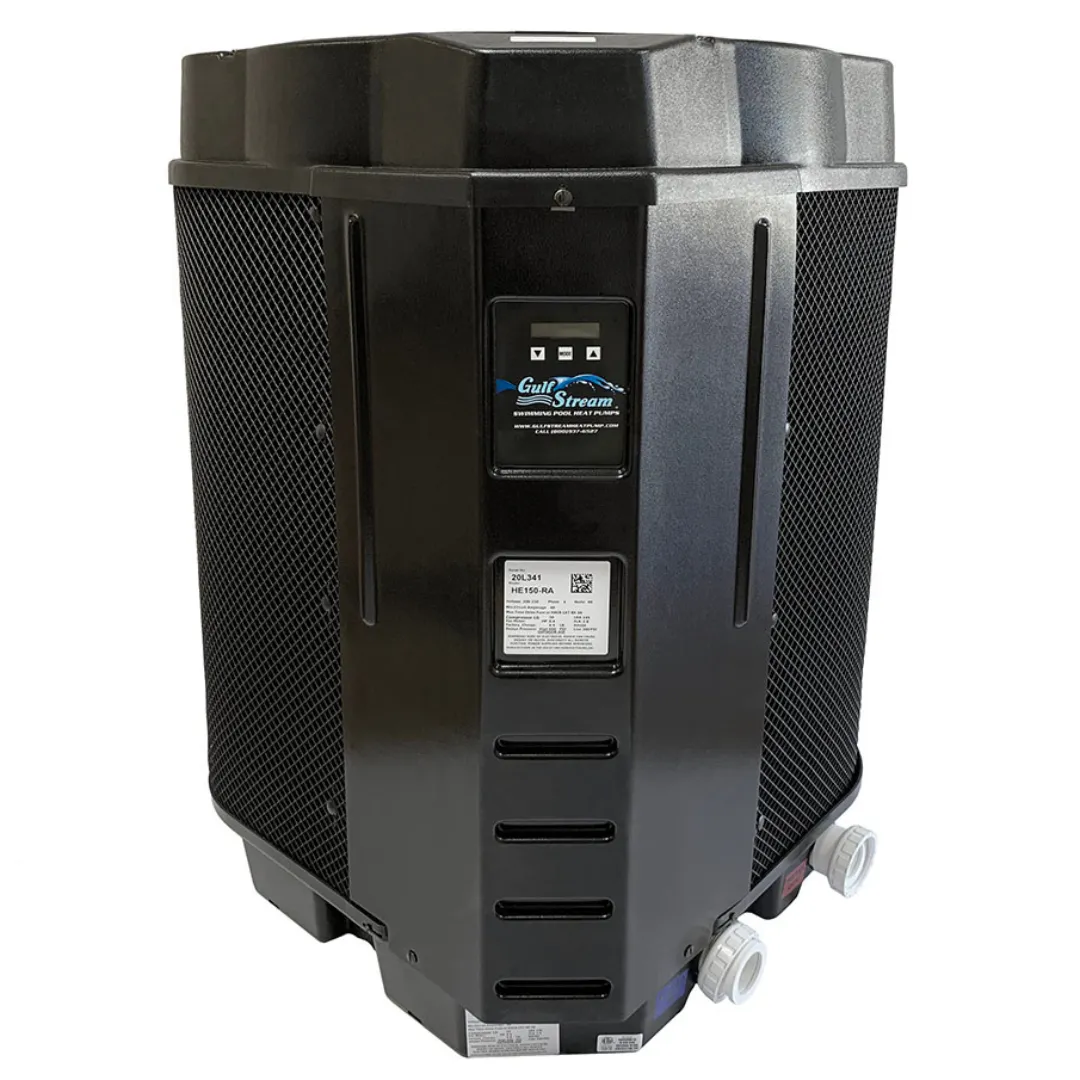

The Gulfstream HR150TA pool heat/cool pump is designed for both heating in winter and cooling in summer, delivering optimal performance and efficiency. The HR150 stands out as a high-efficiency heat pump, ensuring superior performance even in colder months. Engineered with R-410A Refrigerant to regulate flow through the evaporator coil, it achieves peak efficiency at low temperatures, ultimately reducing operating costs and saving you money.
Features:
- Applications: Up to 27,000 gallons* or 800 square feet
- Titanium Turbo Heat Exchanger
- Efficient Scroll Compressor
- Super-Quiet 8 Pole Emerson Fan Motor
- Higher efficiency in colder weather
- Quiet – as low as 56 decibels at full operation
- No-Rust ABS Cabinet

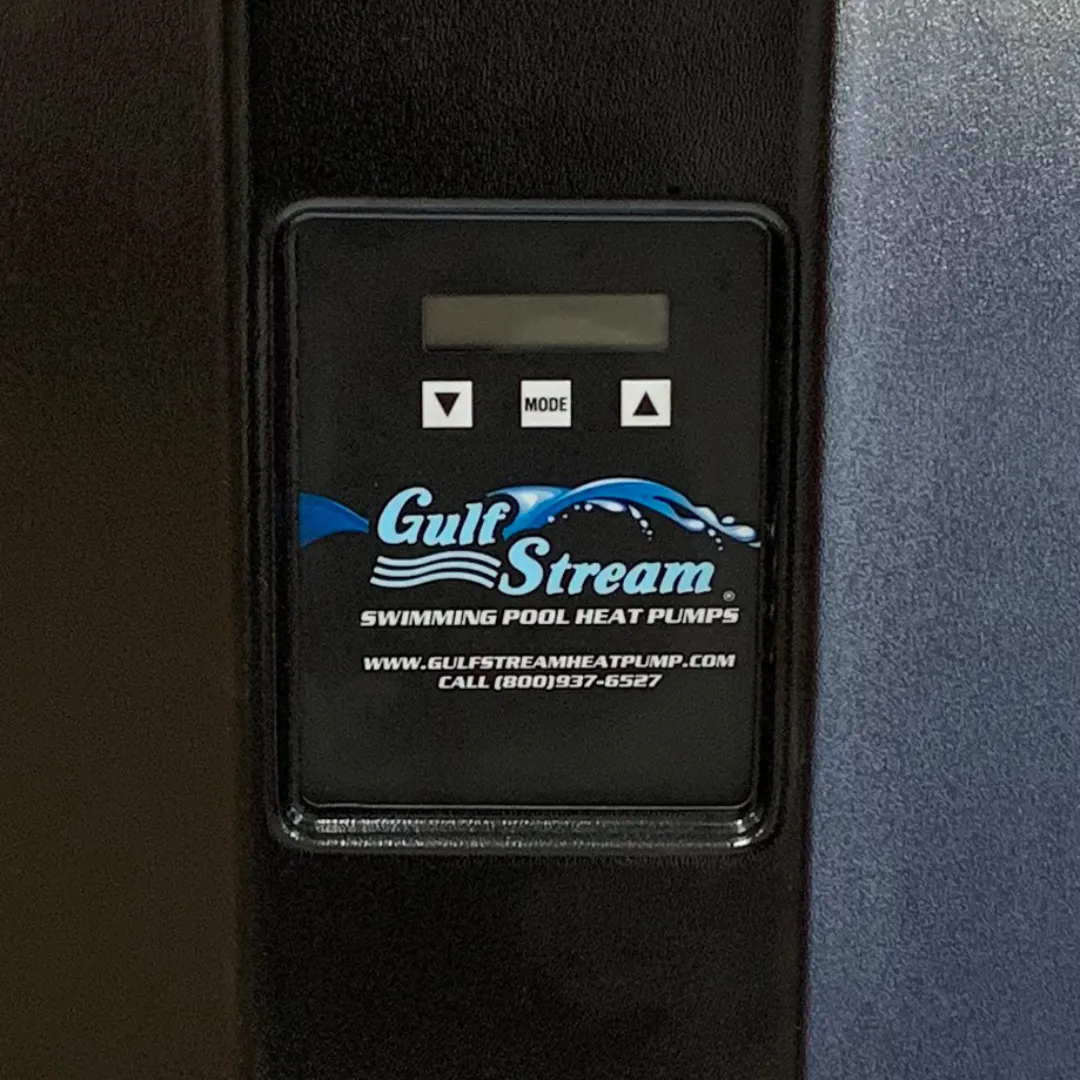

- Digital Diagnostic LCD Display reads in real words
- Super-Sized Evaporator Coil (20 square feet of wrap-around coil)
- Patented Refrigerant Metering System
- 2” Water flow - no need for an external bypass
- Plumbing located out of the way
- Compatible with all remote control systems
- R-410A Refrigerant is environmentally friendly
- Includes standard 2-year labor warranty
- Part Numbers: HE150-T-A, HE150-TA, HE150 TA, HE 150 TA
Specifications:
- Brand: Gulfstream
- Model Number: HE150-T-A
- COP 80/80/80: 6.0/137,000
- Minimum Circuit Ampacity: 40
- Main Time Delay Breaker: 50
- Average Running Amps: 28
- Voltage: 208-230
- Phase: 1
- Hertz: 60
- Plumbing Size: 2" Union
- Min/Max Flow Rate: 30-70
- Recommended Flow: 45
- Fan Motor: 1/3 HP
- Fan Load Amperage: 1.8
- Fan Speed RPM: 825
- Compressor Type: Scroll
- Refrigerant: R410A
- Unit Weight: 234 lbs
- Shipping Weight: 269 lbs
- Unit Dimensions: 31"x31"x46"
- Foot Print: 31"x31"
- Shipping Dimensions: 33"x31"x50"
*Please Note: The BTU rating is the minimum heating requirement for the recommended gallons shown. This is under perfect conditions with no temperature loss. Always size up if you plan to use the heater in cool weather or without a cover. Need help? Contact us anytime - we’re here to help!
