DESCRIPTION

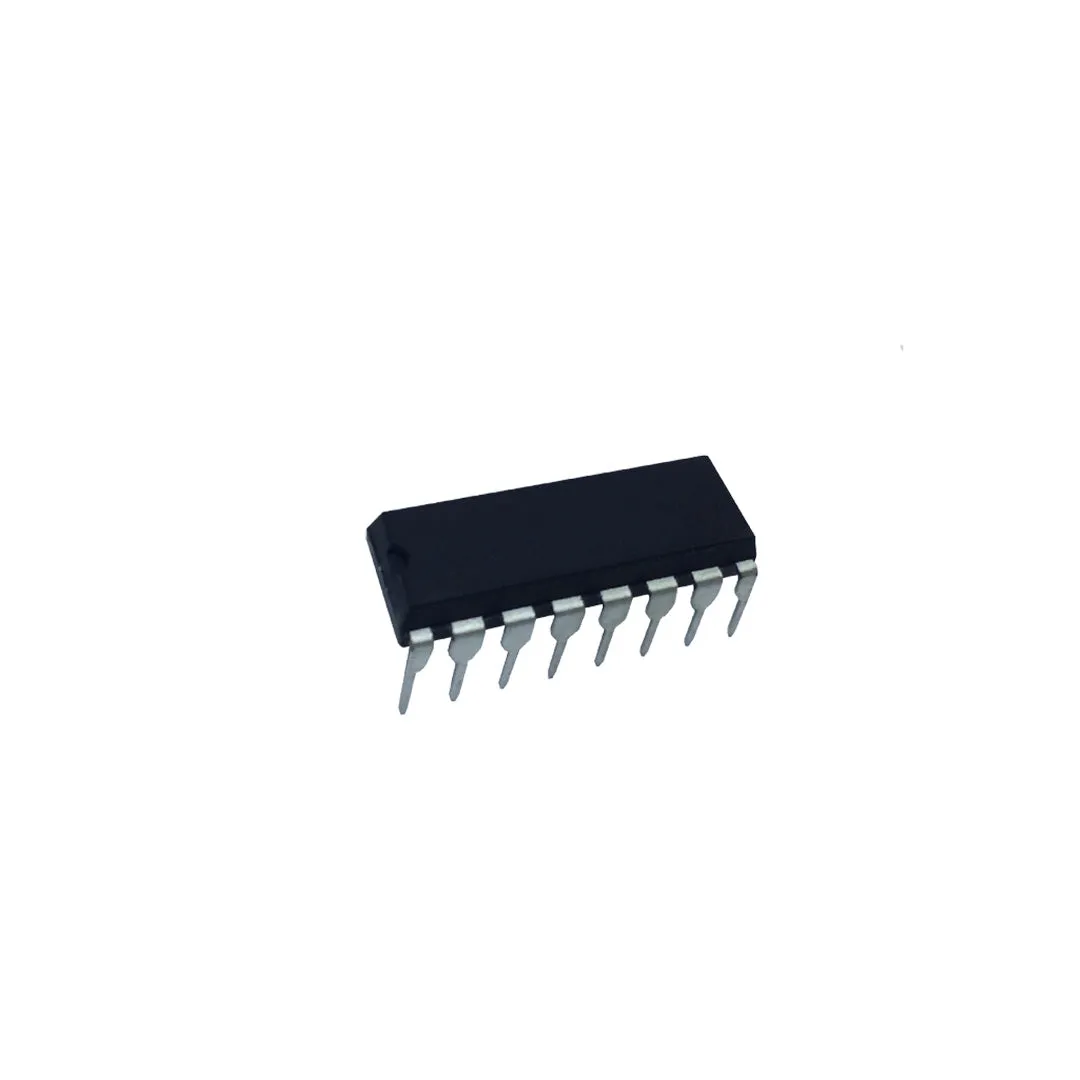

The ULN2803 is a Darlington array IC it can be used to drive Stepper and DC Motors, Relays, Solenoids, and other external circuits operating at high voltages and currents from simple CMOS logic signals from microcontrollers. It has 8 driving channels, each channel can withstand peak currents of 600mA. Suppression diodes are included for back EMF protection while driving inductive loads. The ULN2004 is used in the current version of our 8 Channel Relay Board to drive the onboard relays.
FEATURES
- Contains 7 high-voltage and high current Darlington pairs
- Each pair is rated for 50V and 500mA
- Input pins can be triggered by 5V
- All seven Output pins can be connected to gather to drive loads up to (7×500mA) ~3.5A.
- Can be directly controlled by logic devices like Digital Gates, Arduino, PIC etc
- Available in 16-pin DIP, TSSOP, SOIC packages
